萬向旋轉吊環

產品中心 > 吊環吊點 > 萬向旋轉吊環

萬向旋轉吊環

主體材質采用進口42CrMo合金鋼,相比國內同類產品具備更好的韌性和耐疲券性能。
12.9級高強度螺栓, 6g精度,發黑防銹處理,確保通過螺紋通規檢驗。
生產執行EN 1677標準, 2005年起即出口歐美,通過歐洲和美國實驗室G80級產品檢測
1.5倍工作負荷下,完成2萬次耐疲勞測試。
2倍試驗載荷,4倍破斷拉力測試。
100%全體磁粉探傷檢驗。
可根據客戶需求定制螺紋長度。

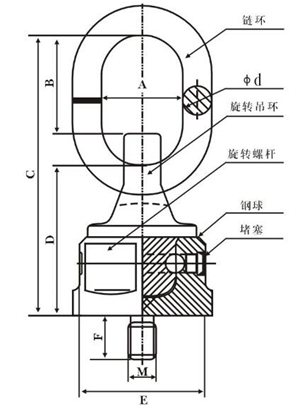

產品編號螺紋規格工作載荷(T)主要技術參數(mm)單重(kg
ABCDdEF
PUL-01M8X1.250.427.039.085.038.07.933.312.00.3
PUL-02M10X1.50.527.039.085.038.07.933.319.00.3
PUL-03M12X1.751.0535.058.0135.038.012.754.319.11.2
PUL-04M14X2.01.1535.058.0135.065.012.754.331.81.2
PUL-05M16X2.01.935.058.0135.065.012.754.331.81.2
PUL-06M20X2.52.1540.067.0160.075.519.164.338.12.2
PUL-07M22X2.52.2540.067.0160.075.519.164.338.12.2
PUL-08M24X3.04.240.067.0160.075.519.164.338.12.2
PUL-09M30X3.5550.895.0205.090.022.274.050.03.9
PUL-10M33X3.5750.895.0205.090.022.274.050.03.9
PUL-11M36X4.0850.895.0205.090.022.274.054.03.9
PUL-12M39X4.0850.895.0205.090.022.274.058.03.9
PUL-13M42X4.51065.0108.0230.0100.025.085.063.06.1
PUL-14M45X4.51065.0108.0230.0100.025.085.068.06.1
PUL-15M48X5.01065.0108.0230.0100.025.085.068.06.1
PUL-16M56X5.51570.0120.0278.0132.032.095.084.010.8
PUL-17M60X5.51570.0120.0278.0132.032.095.090.010.8
PUL-18M64X6.01570.0120.0278.0132.032.095.095.010.8
PUL-19M72X6.02580.0125.0331.0166.040.0130.0108.027.0
PUL-20M80X6.03080.0125.0331.0166.040.0130.0120.027.0
PUL-21M90X6.03580.0125.0331.0166.040.0130.0135.040.0
